Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors

Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors

Gold-plated RJ45 Connector

Cat6e Ethernet Cable

Bare Copper Custom Cable Assembly

Menşe yeri:

Jiangsu, Çin

Marka adı:

RY

Model numarası:

RY-C5E-GH-8

Bize Ulaşın

Bir teklif isteği
Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors
Ürün Detayları
Tip:
KAT 6, Kedi 5e
İletken sayısı:
8
İletişim Pimi:
Altın kaplamalı
Tel Ölçer:
24/26/28/30/32AWG
Ceket malzemesi:
PVC KAYIP
Bağlayıcı Türü:
RJ45
Kalıplama:
UTP
Kablo:
CAT6 32AWG 4 çift
Kablo uzunluğu:
6ft, 10ft, 15ft, 25ft, 50ft
Çap:
Dış Çap: 1,5 * 6,5 mm
İletken Malzeme:
çıplak bakır (BC), Kalay kaplı bakır (TC)
Gerilim:
DC300V 5M ohm/10ms
Yalıtım Direnci:
10M En Az
Kontak Direnci:
maksimum 2 ohm
Çalışma sıcaklığı:
-25C-80C
Veri aktarım hızı:
Maksimum 10,2Gbps
Diferansiyel Empedans:
100±10Ω(TDR)
Ödeme ve Gönderim Koşulları
Min sipariş miktarı
2000
Fiyat
$0.40-0.50
ilgili ürünler
İyi fiyat European Standard 3 Pin Power Cord with Fireproof Material for Laptop and PC AC Adapters çevrimiçi

European Standard 3 Pin Power Cord with Fireproof Material for Laptop and PC AC Adapters

En İyi Fiyatı Alın
İyi fiyat 3 Pin EU Plug Standard ABS+PC Fireproof Computer Power Cord AC Power Cord for Home Appliances çevrimiçi

3 Pin EU Plug Standard ABS+PC Fireproof Computer Power Cord AC Power Cord for Home Appliances

En İyi Fiyatı Alın
İyi fiyat Çekilebilir 3 Pin AC Güç Kablosu Uzantı Kablosu, bilgisayarlar ve ev aletleri için yangın geçirmez malzemelerle çevrimiçi

Çekilebilir 3 Pin AC Güç Kablosu Uzantı Kablosu, bilgisayarlar ve ev aletleri için yangın geçirmez malzemelerle

En İyi Fiyatı Alın
İyi fiyat RY Yüksek Kaliteli AB Güç Kablosu 3 Çıkışlı Bakır Kablo 1.5m Uzatma Kablosu Dizüstü Bilgisayar Masaüstü PC için çevrimiçi

RY Yüksek Kaliteli AB Güç Kablosu 3 Çıkışlı Bakır Kablo 1.5m Uzatma Kablosu Dizüstü Bilgisayar Masaüstü PC için

En İyi Fiyatı Alın
Bize Ulaşın
86--13405295160
info@rygroup.net
Şimdi İletişime Geçin
Ürün Açıklaması
Custom RJ45 Connector CAT6e Ethernet Cable
Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors 0
Product Overview
High-quality custom RJ45 connector CAT6e Ethernet cable with UTP bare copper construction and straight cable configuration. Available in OEM packing for bulk orders.
Key Features
  • Super slim flat CAT6 network Ethernet cable design
  • Available in blue, black, and custom colors
  • Ideal for networking, data transfer, and phone line applications
  • Connects PC to DSL/cable modem, hub, switch, and router
  • Supports 10/100/1000 Mbps network speeds
  • Flat design fits easily in cramped spaces and under carpets
  • Easy to hide behind furniture and up walls
Technical Specifications
Cable Specification CAT6 32AWG 4 pairs
Cable Length 6ft, 10ft, 15ft, 25ft, 50ft (Custom lengths available)
Color Options Black, Beige, Blue (Custom colors available)
Diameter OD: 1.5×6.5mm
Wire Gauge 32AWG
Conductor Bare copper (BC), Tin plated copper (TC) optional
Certifications RoHS, UL, CE, FCC
Plug Mould PVC molding, plastic shell, metal shell
Connector Gold-plated
Electrical Properties
Quality Control 100% open & short test
Voltage DC300V 5M ohm/10ms
Insulation Resistance 10M minimum
Contact Resistance 2 ohm maximum
Working Temperature -25°C to 80°C
Data Transfer Rate 10.2Gbps maximum
Differential Impedance 100±10Ω (TDR)
Standards Compliance TIA/EIA 568B standard

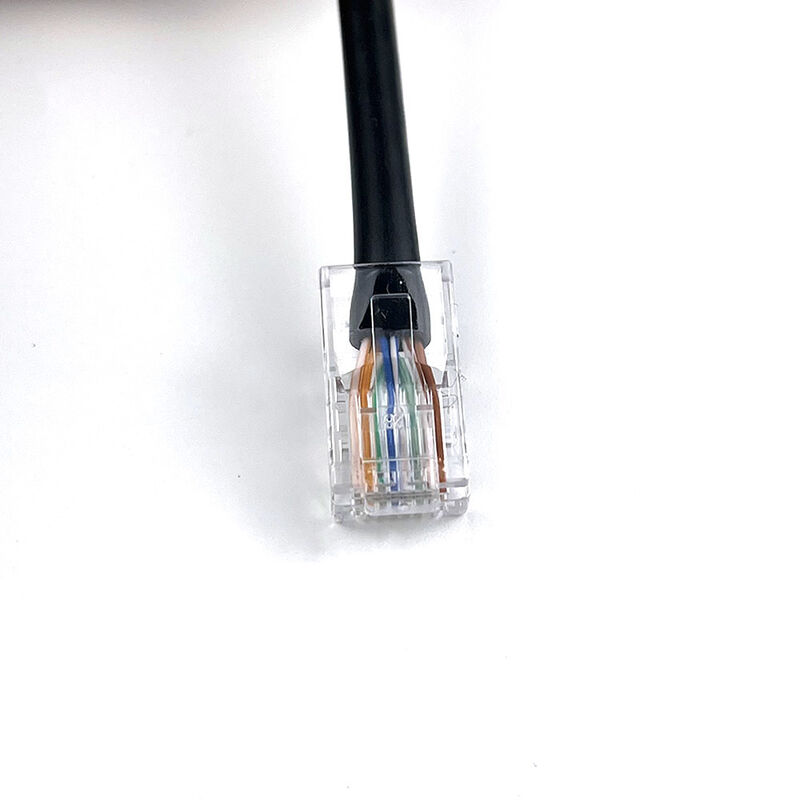

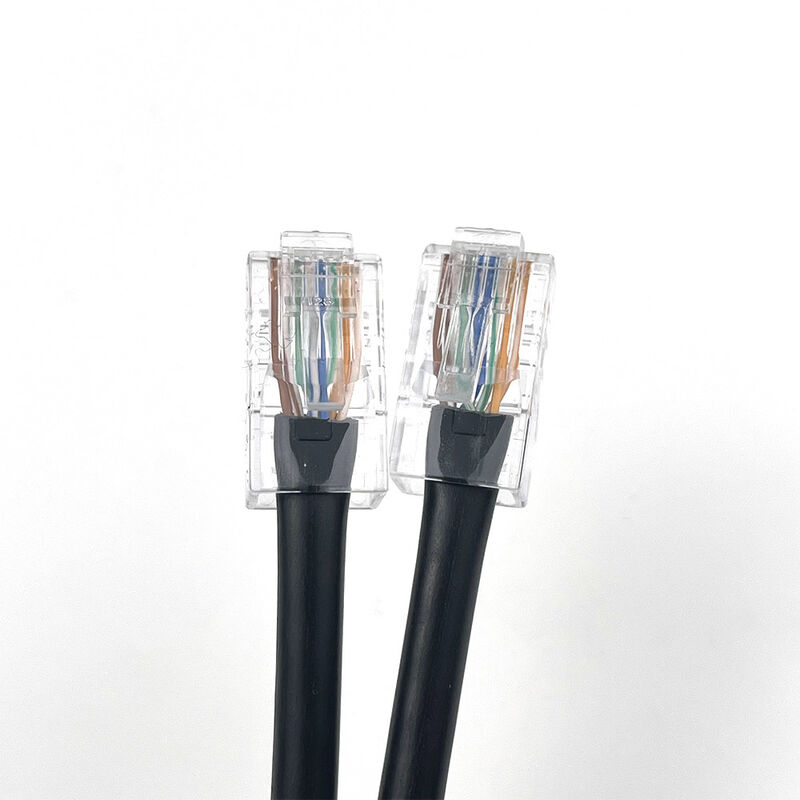

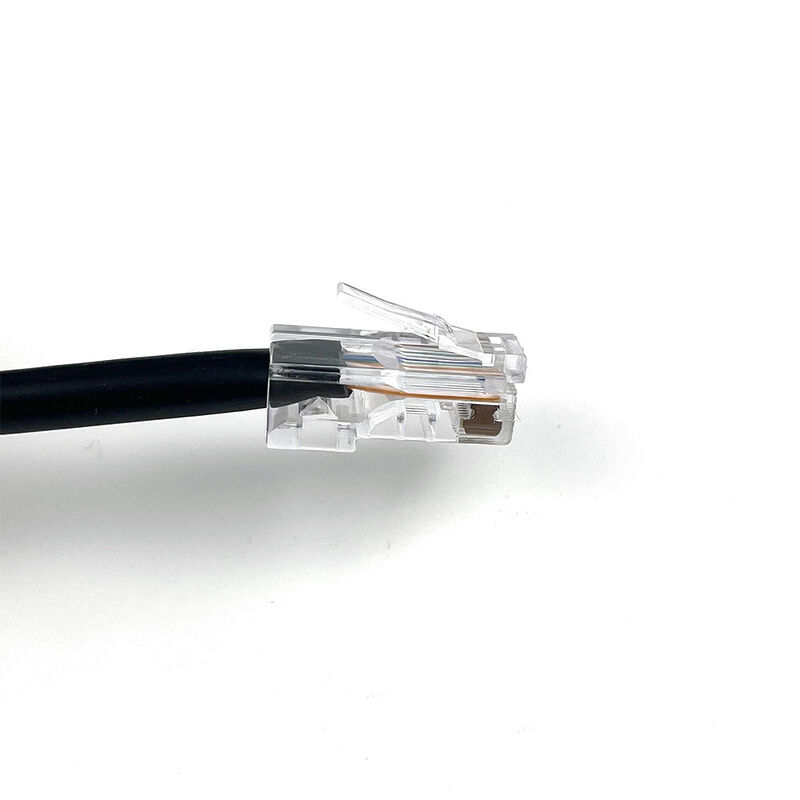

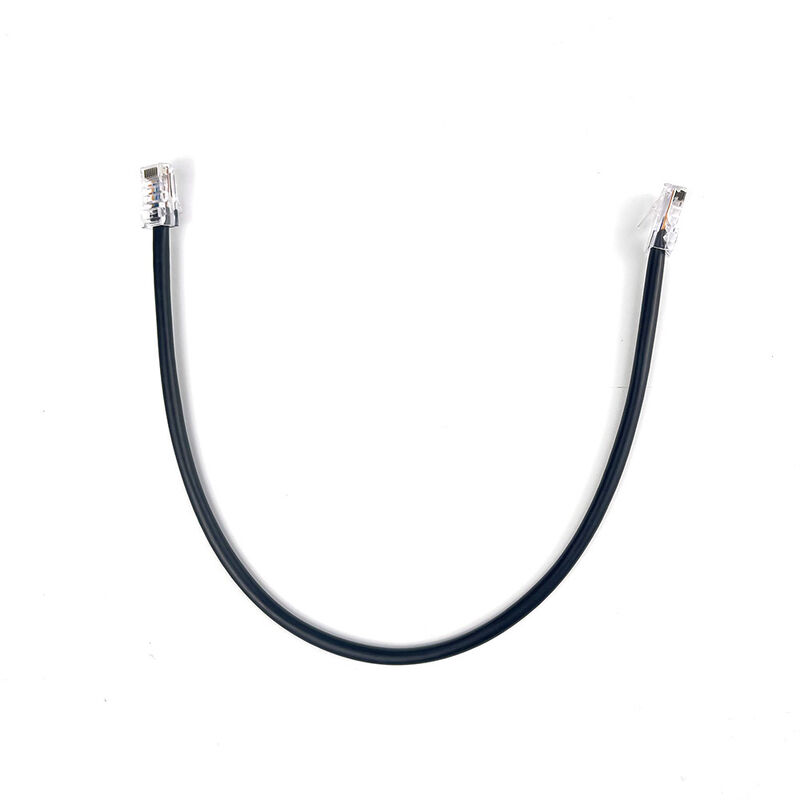

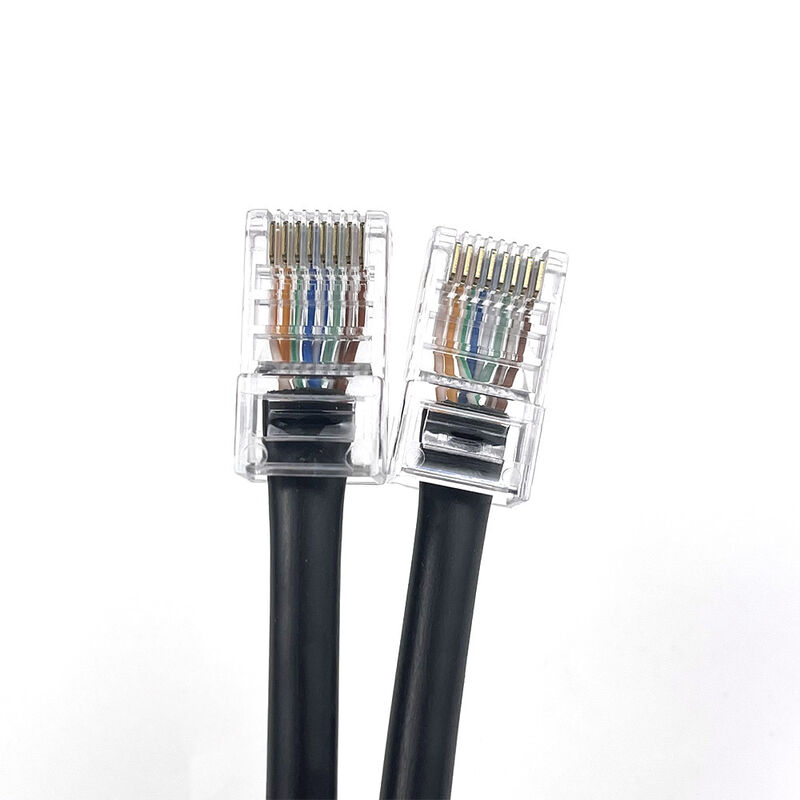

Product Images
Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors 1 Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors 2 Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors 3 Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors 4 Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors 5 Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors 6 Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors 7 Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors 8 Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors 9 Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors 10 Custom RJ45 Connector Cat6e Ethernet Cable with Gold-Plated Contacts and Bare Copper Conductors 11
Frequently Asked Questions
When can we get the reply?
Any inquiries will be replied within 24 hours.
Can I get some samples?
Yes, sample orders are available for quality check and market testing. Samples are shipped freight collect.
What's the delivery time?
Samples typically take 1-3 days to produce. Production orders usually take 3-7 days to complete.
What's your payment term?
We accept PAYPAL and T/T as primary payment methods. Other payment terms can be negotiated.
What about quality problems?
If any quality issues arise, we provide technical support and return service.
How to contact us?
Send your inquiry details in the form below and click "Send" now! Free samples and detailed answers are waiting for you.
